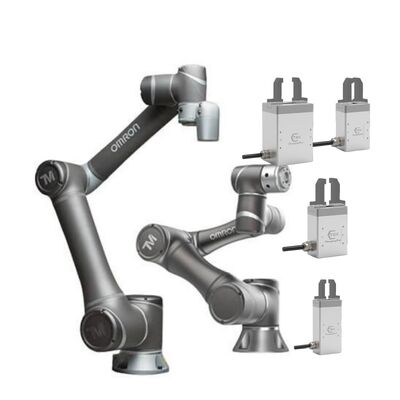

Techman AI Cobot TM5-700 TM5-900 Collaborative Robot Arm CTPM2F8S CTPM2F14S CTPM2F20 CTPM2F30 Zhixing Industrial Flat Hand

Techman AI Cobot TM5-700 TM5-900 Collaborative Robot Arm CTPM2F8S CTPM2F14S CTPM2F20 CTPM2F30 Zhixing Industrial Flat Hand

MOQ: 1
価格: US $12000.00 - 20000.00/ Set
標準パッケージ: 段ボール箱・木箱
配達期間: 75~90日
支払方法: T/T
供給能力: 年間200セット
詳細情報
起源の場所
中国
ブランド名
Techman Robot
モデル番号
TM5-700
電圧:
DC 48V
電力(w):
400W
最高のペイロード:
6KG
典型的な速度:
1.1m/s
再現性:
±0.05mm
電源:
100-240VAC、50-60Hz
IP分類:
IP54(ロボットアーム)、IP32(コントロールボックス)
温度:
0-50℃
最高速度:
4m/s
到着:
700mm
最小注文数量:
1
価格:
US $12000.00 - 20000.00/ Set
パッケージの詳細:
段ボール箱・木箱
受渡し時間:
75~90日
支払条件:
T/T
供給の能力:
年間200セット
製品説明
Product Overview

The Techman TM5-700 is a compact 6-axis collaborative robot with built-in vision system. It has 700 mm reach and 6 kg payload, making it suitable for medium-sized tasks where space is limited but precision and vision guidance are needed. The integrated camera and AI processing allow it to see, locate, and pick objects without extra hardware.

Features
  • Built-in vision system with color camera
  • Easy hand-guiding teaching
  • TMflow drag-and-drop programming
  • Compliant safety design (ISO/TS 15066)
  • Built-in I/O and Modbus support
  • No external PC required for vision tasks
  • Fast setup for pick & place and assembly
Technical Specifications
Payload: 6 kg
Reach: 700 mm
Degrees of Freedom: 6 axes
Repeatability: ±0.05 mm
Maximum Speed: 4 m/s (joint speed)
Vision: Integrated 5MP color camera, 1.2 m * 1.2 m working area
IP Rating: IP54
Mounting: Floor, ceiling, wall
Power Consumption: ~200 W average
Applications
  • Pick and place with vision
  • Machine tending
  • Assembly and screw driving
  • Packaging and palletizing
  • Quality inspection tasks
FAQ

Q: Does it need extra vision hardware?

A: No – vision is built-in with camera and processor.

Q: Is programming easy?

A: Yes – TMflow uses drag-and-drop blocks.

Contact Us

Email:edwardzhao@gbsxj.com

Phone/WeChat/WhatsApp: +8615121023088

Related Products
  • TM5-900 (longer reach version)
  • TM12 / TM14 (higher payload models)
  • TMvision add-ons
  • TMmobile base
