OnRobot Robotiq DH Robotics Gripper Lightweight Robots KUKA LBR IIWA 7 Axis Palletizing Packaging Collaborative Robot

OnRobot Robotiq DH Robotics Gripper Lightweight Robots KUKA LBR IIWA 7 Axis Palletizing Packaging Collaborative Robot

MOQ: 1
価格: US $18000.00 - 20000.00/
標準パッケージ: 厳格な保護
配達期間: 90〜150日
支払方法: T/T
供給能力: 年間500ユニット
詳細情報
ブランド名
KUKA
モデル番号
LBRいいわ
体重(kg):
30
定格ペイロード:
14kg / 7kg
到着:
800mm~820mm
姿勢の反復性:
±0.15mm
設置位置:
床,天井,壁
保護評価:
IP54
軸ごとのトルク精度:
±2%
最小注文数量:
1
価格:
US $18000.00 - 20000.00/
パッケージの詳細:
厳格な保護
受渡し時間:
90〜150日
支払条件:
T/T
供給の能力:
年間500ユニット
製品説明

Product Overview

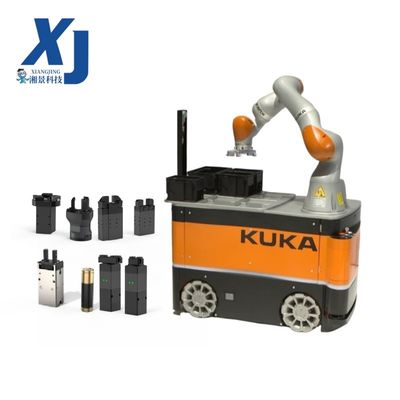

The KUKA LBR iiwa Collaborative Robot is a pioneering 7-axis cobot designed for safe, intuitive human-robot interaction in dynamic production environments. With integrated torque sensors in all joints, it detects contact and responds instantly, enabling barrier-free collaboration without safety fencing. Available in 7 kg and 14 kg payload variants, the LBR iiwa offers 800 mm or 820 mm reach for tasks like assembly, machine tending, and quality inspection. Powered by KUKA Sunrise.OS, it supports easy programming via lead-through teaching and integrates with Industry 4.0 systems, making it ideal for automotive, electronics, and research applications.

Key Features

  • Torque Sensing Safety: 7 integrated sensors detect collisions and adjust force for safe operation.
  • 7-Axis Flexibility: Human-like redundancy for intuitive movements and obstacle avoidance.
  • Lead-Through Programming: Hand-guide the robot to teach paths without coding.
  • Sunrise.OS Software: User-friendly interface with drag-and-drop programming.
  • Lightweight Design: Weighs 23 kg (7 kg model) for easy mobility.
  • High Precision: ±0.1 mm repeatability for delicate tasks.
  • Modular End-Effectors: Compatible with grippers, tools, and sensors.
  • IP54 Protection: Dust and splash resistant for industrial use.

Technical Specifications

td>Sunrise.OS
Parameter 7 kg Model 14 kg Model
Payload 7 kg 14 kg
Reach 800 mm 820 mm
Degrees of Freedom 7 7
Repeatability ±0.1 mm ±0.1 mm
Maximum Speed 1 m/s 1 m/s
Weight 23 kg 29 kg
Protection Rating IP54 IP54
Operating Temperature 0°C to 45°C 0°C to 45°C
Controller Sunrise.OS
Certifications ISO 10218-1, CE ISO 10218-1, CE

Applications

The KUKA LBR iiwa Collaborative Robot is suited for safe, flexible automation tasks:

  • Assembly: Precise part insertion in electronics manufacturing.
  • Machine Tending: Loading/unloading CNC machines without barriers.
  • Quality Inspection: Force-sensitive scanning and testing.
  • Research & Development: Prototyping and human-robot interaction studies.
  • Packaging: Gentle handling of fragile products.

Frequently Asked Questions

How does the LBR iiwa ensure safety?

Torque sensors in all joints detect contact and stop movement instantly.

What is the difference between 7 kg and 14 kg models?

The 14 kg model has a higher payload and slightly longer reach for heavier tasks.

Is programming intuitive?

Yes, lead-through teaching allows hand-guiding the robot to learn paths.

What is the robot's weight?

23 kg (7 kg model), making it easy to move and install.

Can it be used outdoors?

IP54 protection suits indoor industrial use; optional covers for light outdoor.

Contact Us

For more information about the KUKA LBR iiwa Collaborative Robot, pricing, or to request a demo, contact our team:
